  1. Destination Connectors

FTP

PreviousBigQueryNextGoogle Cloud Storage (GCS)

Last updated 1 year ago

Was this helpful?

Overview

You can create an SFTP Destination Connector to write CSV files (by default) or JSONL files to an SFTP folder using an SSH Private Key or your SFTP password.

Note: We only support SFTP Destination Connector and not FTP.

Supported file formats: CSV and JSONL

Prerequisites

Required information:

  • SFTP Host

  • Port Number

  • Username

  • Password

  • Directory

Creating a SFTP Destination Connector

Step 1: After selecting + New Connector, under the System prompt, click SFTP.

Step 2: Provide a Connector Name.

Step 3: Select Destination Connector.

Step 4: Select the SFTP protocol used by the server.

Step 5: Provide the SFTP host.

Step 6: Provide the port number.

Step 7: Provide your SFTP username.

Step 8: Provide the directory path for the SFTP folder you want to connect to. (Note: the path is case sensitive)

Step 9: Authentication

You have the option to authenticate with an SSH Private key or with a Username and Password.

Enter the SSH Private Key

If you choose to authenticate with an SSH Private Key, provide the SSH private key with the BEGIN prefix and END suffix, as shown below.

Some private keys have a password as well. If you have one, provide the password in the in the SSH Private Key Password field. If you do not have one, you can leave this field blank.

Enter the Password

If you select this option, provide your SFTP password.

Step 10: Destination Schema

Design the output schema via two options, either import the schema or build it within Osmos.

Option 1: Schema Import

Upload or drag & drop the schema file.

Import a file with the headers along with one row of sample data. This data is used only in schema creation.

Option 2: Building the Schema

Use the schema designer to build the output schema for this Destination Connector.

Parameter

Description

Field Name

Provide a field name for the output fields. These names will be used as the column headers or field names in the output file you are writing to.

Type

Define the type of each field. The field types will be used to enforce rules when you send data to this Connector.

Nullable

Check this box if the field is nullable. If the field is not nullable, you will be required to provide values for this field when sending data to this Connector.

Delete

Deletes the field.

Add Field

Adds another field to the schema.

1. Click Add Field for each additional field required in the schema 2. Select Create Schema once you have built the schema.

Advanced Options

Output File Format

By default, this Destination Connector writes CSV files, and each Osmos Pipeline run produces a new file. If preferred, you can choose to change the output to a JSONL file instead of a CSV file.

File Prefix Format String

We support the designation of file prefixes in order to more easily manage the output of this connector. The contents of this field will be written into the filename of the data this Connector writes. If a prefix is specified, a UUID will be appended to it to prevent filename conflicts.

Limit Records Per File

By default, we do not set a limit on the number of records to be written to a single destination file by a single job (i.e. a single run of a Pipeline or Uploader). If this box is checked, the data written to the destination will be "chunked" into separate files which contain at-most the number of records designated here. These "chunked" files will be suffixed with it's position in the sequence i.e. filename_part_1.csv, filename_part_2.csv, etc.

Validation Webhook

We support the use of Validation Webhooks to prevent bad data from being written to your systems, adding another layer of protection to the built-in validations that Osmos provides. The Webhook URL can be posted here.

Overwrite Output Column with Raw Input Data

Enter the name of the destination column where you'd like to store the entire raw source record data. The raw source record data will be stored as a JSON string in the provided destination column.

Additional Configuration for File Prefix Format

File Output

We support the designation of file prefixes in order to more easily manage the output of this connector. The contents of this field will be written into the filename of the data this Connector writes. If a prefix is specified, a UUID will be appended to it to prevent filename conflicts. Osmos leverages magic string identifiers in order to include additional information in your file prefix.

Output Scenarios:

  1. No file prefix Output: <user base path>/chunk-<chunk num>-<UUID>.<file extension>

  2. File includes description in the prefix Sample prefix: my_osmos_output_ Output: <user base path>/my_osmos_output_chunk-<chunk num>-<UUID>.<file extension>

  3. File includes datetime specifiers in the prefix

    Sample prefix: %F_%T_ Output: <user base path>/<YYYY-MM-DD>_<HH:mm:ss>_chunk-<chunk num>-<UUID>.<file extension>

Connector Options

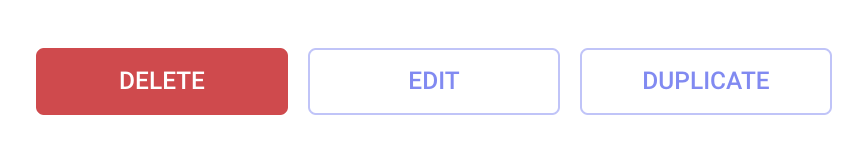

The connector can be deleted, edited and duplicated.

Duplication

To save time, the connector can be duplicated. This new connector needs to be named and can be edited, as needed.

For additional configuration go to

For more information on Validation Webhook configuration, see

DateTime: You can include datetime values in your file output using . The time values created here correspond to Osmos internal system time at the moment the job was started. See example 3

↖️
Server Side Validation Webhooks
String from time (strftime) format specifiers
Additional Configuration for File Prefix Format.
Schema Upload
